Tumbler Barrels Sizes/Dimensions/Capacity Data

See below for data on barrel size, dimensions and volumetric capacity.

© This information is provided courtesy of Aussie Sapphire to assist our customers (current November '24).

Model Weight

Outside
Diameter

Inside
Diameter
Outside
Height
Inside
Height
Total
Volume
Lortone 1.5 lb 0.37 kg 11.4 cm 10.0 cm 8.4 cm 7.0 cm 0.55 L
Lortone 3 lb 0.51 kg 11.4 cm 10.0 cm 12.3 cm 10.5 cm 0.82 L
Lortone 4 lb 0.87 kg 16.0 cm 14.5 cm 11.0 cm 9.0 cm 1.45 L
Lortone 6 lb 1.4 kg 19.8 cm 17.0 cm 11.0 cm 9.0 cm 2.0 L
Lortone 12 lb 2.3 kg 19.8 cm 17.0 cm 21.0 cm 19.0 cm 4.3 L
Vevor 3lb rubber 0.45 kg 11.0 cm 9.0 cm 11.3 cm 9.0 cm 0.57 L
Vevor 3kg plastic * 0.63 kg 15.0 cm 9.5 cm 17.0 cm 13.8 cm 1.0 L
Vevor 5kg plastic * - 22 cm 13 cm 18 cm 17.8 cm 2.6 L
Nat Geo Prof. 3 lb - 13.0 cm 11.3 cm 11.0 cm 9.0 cm 0.9 L
Auscut Smooth 3 0.6 kg 11.4 cm 10.0 cm 12.2 cm 10.6 cm 0.83 L
Auscut Sm7 Half 1.5 kg 19.5 cm 17.0 cm 12.0 cm 9.5 cm 2.1 L
Auscut Sm7 Large 2.5 kg 19.5 cm 17.0 cm 21.0 cm 20.0 cm 4.5 L
Thumler Model B 15 lb * 3.25 kg 23.5 cm 16.5 cm 23.0 cm 19.5 cm 4.5 L
Lortone 20 lb * 7.25 kg 32.0 cm 19.0 cm 21.0 cm 20.0 cm 6.2 L
Lortone 40 lb * 10.5 kg 32.0 cm 22.5 cm 32.0 cm 19.5 cm 13.2 L

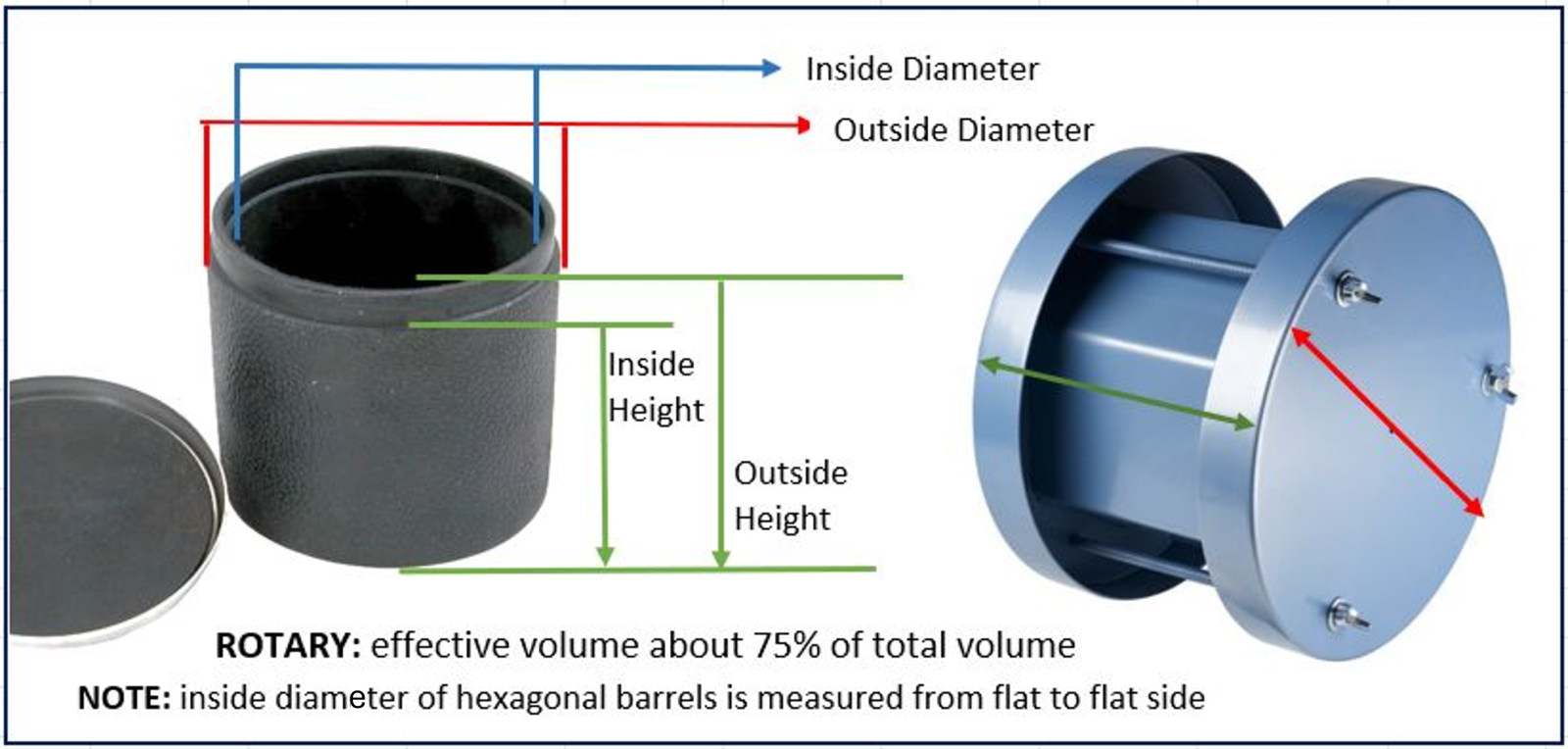

For hexagonal barrels, diameter is measured from flat to flat side.

When loading the barrel, the weight rating of the tumbler usually means the weight of the barrel and ALL contents should not exceed the rated weight capacity.



For effective tumbling, you should aim to fill the barrel approximately 2/3 to 3/4 full.  Therefore you should use about 70% of the total volume to calculate how much media you may need.  The following bulk density data for various media types is a guide only - there may be variation between batches.

    Media Type Bulk Density (kg/L)
    Stainless Steel Shot (mixed) 4.7
    Stainless Steel Pins (1 x 10 mm) 3.8
    Hardwood Cubes 0.45
    Crushed Nut Shell (Standard) 0.68
    Plastic Cones 1.0
    Plastic Pyramids 1.55
    Plastic Pellets 0.55
    Ceramic Balls 4 mm 1.57
    Ceramic Triangles 6 mm 1.46
    Porcelain Balls/Triangles 1.56
    Ceramic Fast Cut 6 mm 1.52
