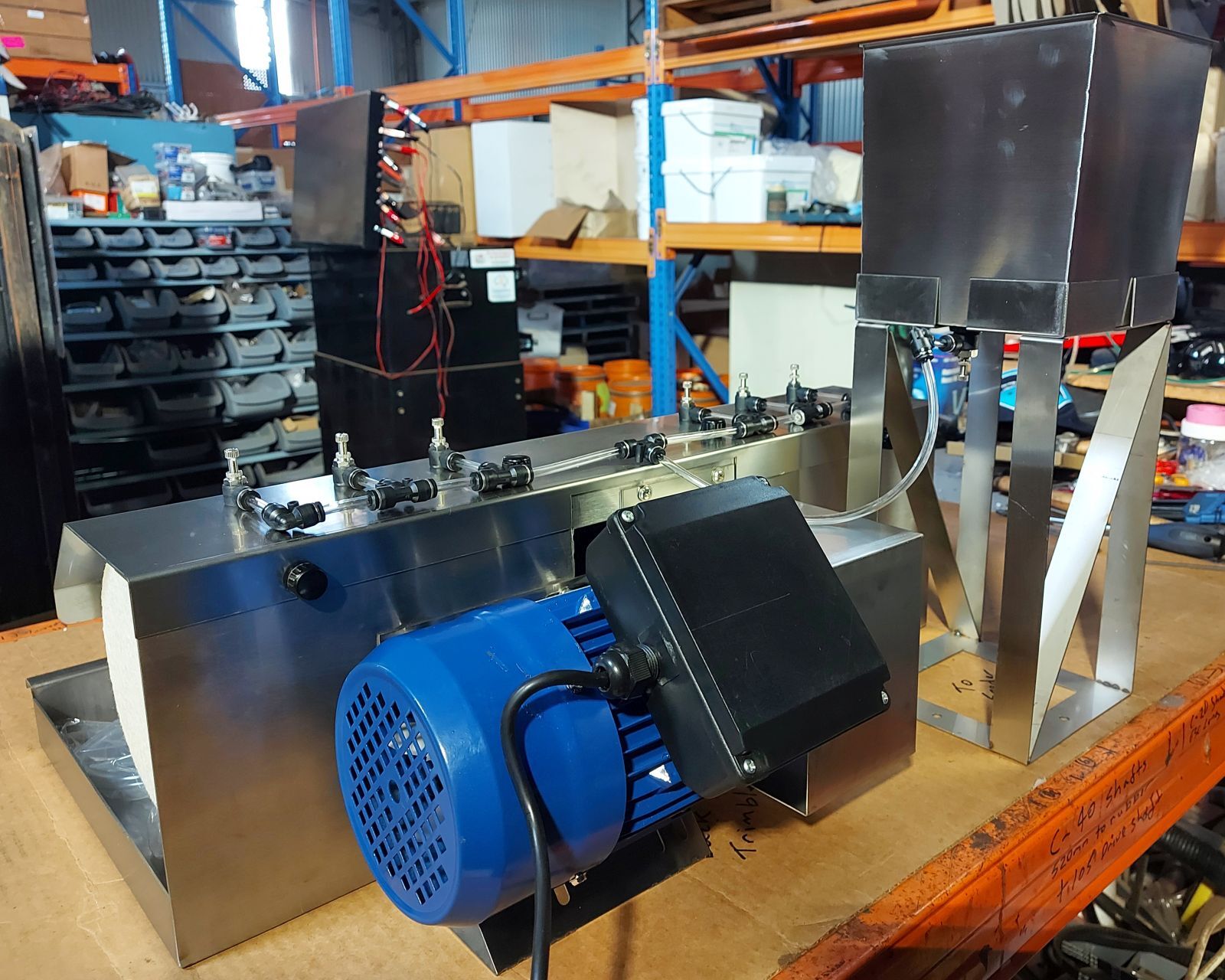

Auscut AS-6x6 Cabbing Machine, no wheels (bare machine)

In Stock
$1,600.00

17 units in stock



Calculate Shipping



Pick-up from store (not shipped) - $0.00
Pickup from our Warehouse in Glen Innes by appointment only. Please advise date/time in order comments.

Auscut AS-6x6 Cabbing Machine complete with wheels
Stainless Steel, 6 wheel x 6" (150mm) Arbor

NO WHEELS or END PLATE INCLUDED.

IN STOCK NOW FOR IMMEDIATE DELIVERY.

The Auscut AS-6x6 is an Aussie Sapphire product - proudly assembled and tested in our own workshop using local and imported parts. Manufactured exclusively for us to our design and specifications.

Proven design using CNC manufacturing to produce the full Stainless Steel frame with consistent quality of all parts.  All assembly and test running is carried out in our workshop giving us another quality control point.


FEATURES:
  •  6 individually controlled stainless water taps fed from a separate stainless steel 4 litre water tank (included).
  • Full stainless steel construction with a precision machined 3/4” shaft that is tapped on both ends for 1/4-20 spin-on end plates for the Left or Right hand side.
  • Sealed for life flex mount bearings are fitted for reduced noise and vibration.
  • The removable top cover has the water kit installed with quality taps and fittings.  Drainage hose is included - you will need to supply a bucket to drain into.
  • 1/2 hp motor (230 Volt) with Australian 3 pin plug.

The Auscut AS-6x6 unit comes complete with motor, quality cogged drive belt, belt guard and taper lock motor pulley.   The motor is shipped separately for safe transit and will need to be fitted when unpacked (see our set up video).  You will need to supply wheels for this bare machine.

The motor will need to be fitted and wheels installed before you can start cabbing.


Footprint of the machine is 67cm wide and 57 cm deep - allow room on the right hand side for polishing.

Mount on a suitable workbench with access to a power point - use the included clamps to secure it to the bench.
The motor is not fitted with an on/off switch.  We recommend running the motor through a surge-protected power board with individual switches - this adds another layer of protection to the motor and allows you to mount the power board in a convenient location.

FREIGHT:  this unit ships in two boxes by Toll Ipec courier so please provide a courier suitable delivery address.

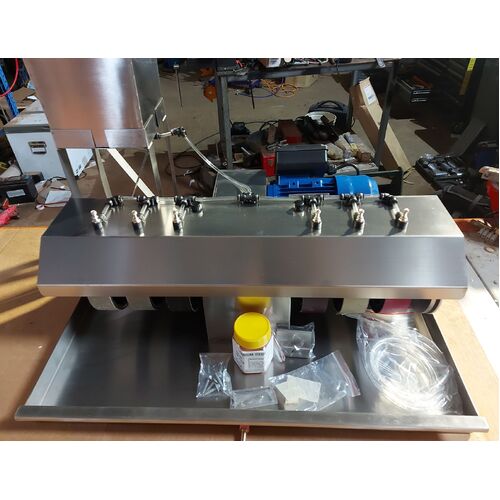

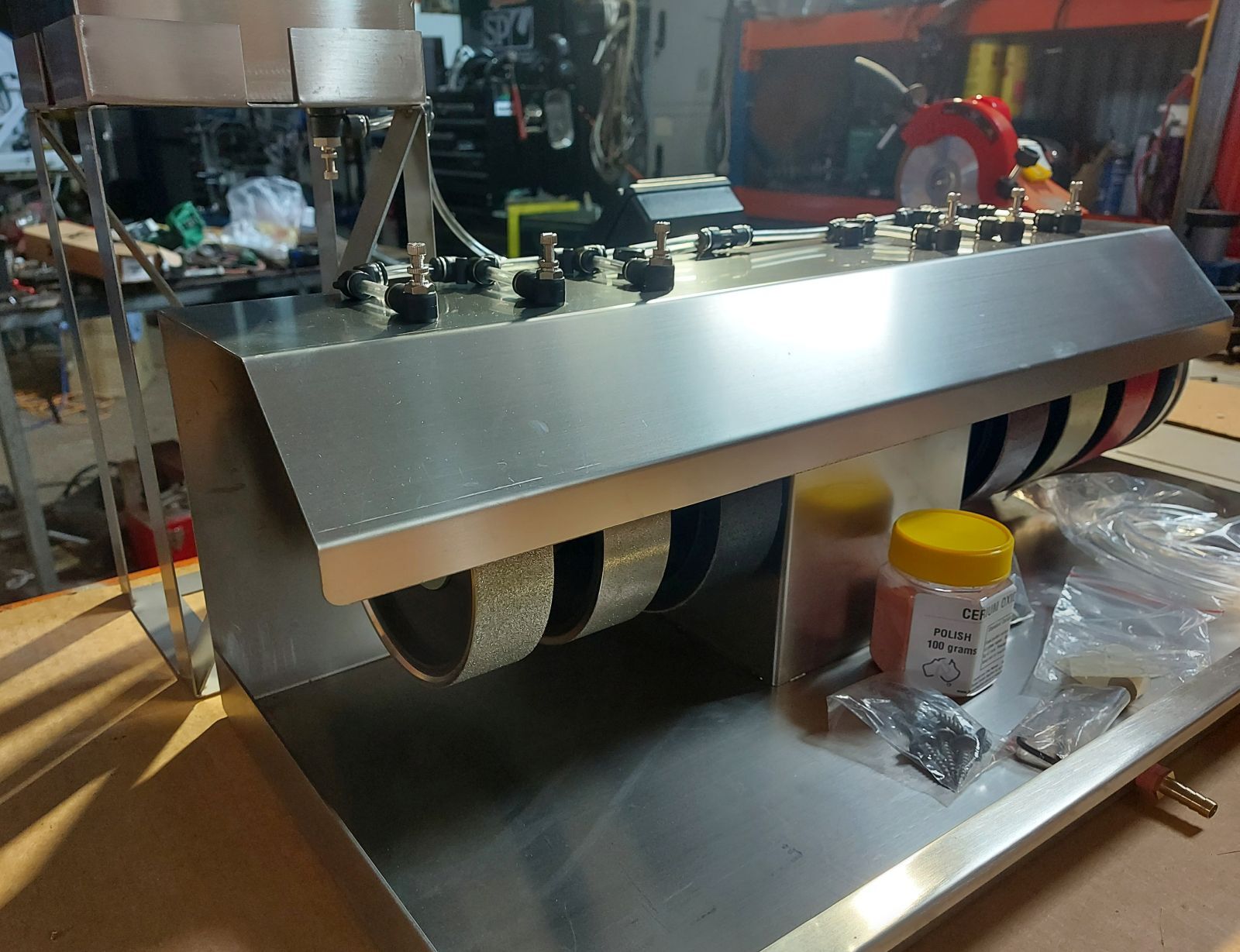

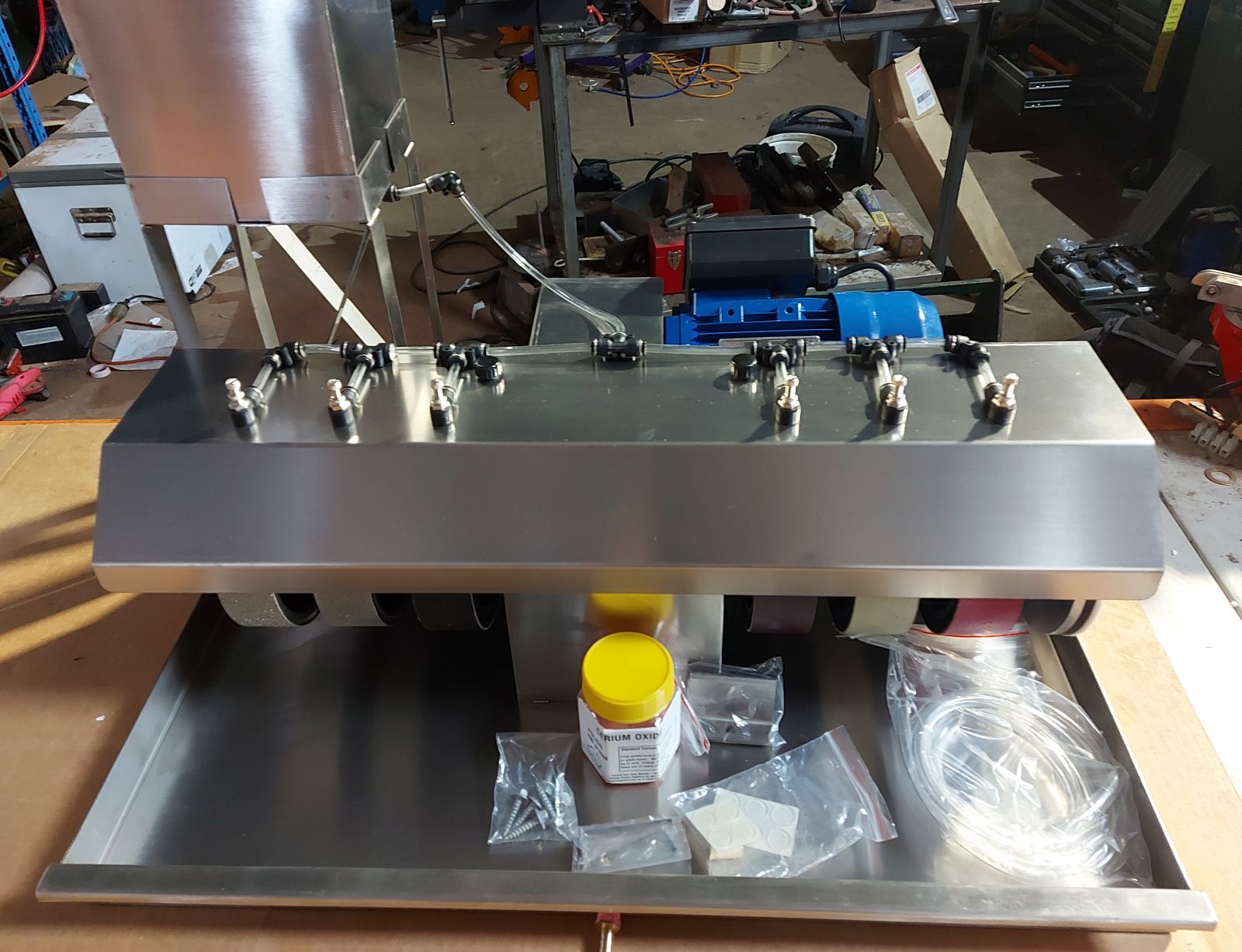

NOTE:  file photos of the complete package have been used - this product is the cabbing arbor supplied with motor and water kit ONLY - no wheels, end plate or polish are included.



(960_bare)

SKU 960_bare
Brand Aussie Sapphire
Shipping Weight 28.0000kg
Shipping Width 0.700m
Shipping Height 0.350m
Shipping Length 0.450m
Shipping Cubic 0.110250000m3
